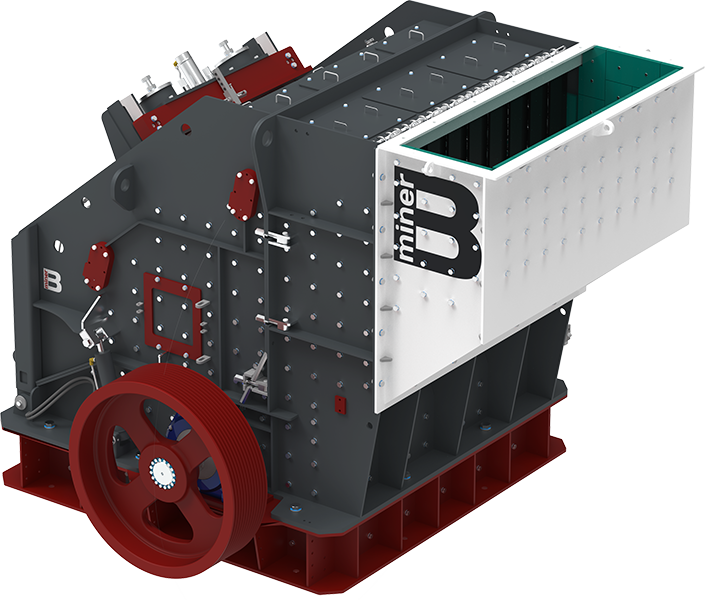

Impact crushers B-miner with horizontal shaft of BM-ICP, BM-ICS, BM-ICT series
Impact horizontal crushers B-miner are notable for special endurable rotor and crushing chamber.
Original design provides stable high capacity at all stages of crushing.
B-miner suggests 3 types of impact crushers with horizontal shaft to solve any technological challenge:
Primary impact crushers BM-ICP
B-miner BM-ICP impact crushers are designed for primary stage of crushing. High degree of grinding and power are the main features of this type. They can be used for both soft rock and medium hardness rock.
| Opening feed size, mm | Rotor diameter, mm |
Capacity range, t/h |
Engine power, kW |
Weight, kg | |
| BM-ICP1620 | 2040Х1600 | 1600 | 500-950 | 400 | 41000 |
| BM-ICP1518 | 1840Х1400 | 1500 | 400-750 | 315 | 34600 |
| BM-ICP1415 | 1540х1300 | 1400 | 200-600 | 250 | 22000 |
| BM-ICP1313 | 1320х1100 | 1300 | 175-450 | 200 | 18200 |
| BM-ICP1210 | 1020х1100 | 1200 | 100-320 | 160 | 14300 |
Secondary impact crushers BM-ICS
B-miner BM-ICS impact crushers are designed for the secondary stage of crushing both soft rock and medium hardness rock.
Enlarged crushing chamber allows to process larger volume of incoming material which has a direct impact on machine capacity.
| Opening feed size, mm | Rotor diameter, mm |
Capacity range, t/h |
Engine power, kW |
Weight, kg | |
| BM-ICS1520 | 2040х980 | 1500 | 300-750 | 400 | 29300 |
| BM-ICS1315 | 1540х900 | 1300 | 200-450 | 250 | 18500 |
| BM-ICS1213 | 1340х800 | 1200 | 150-300 | 200 | 12700 |
| BM-ICS1210 | 1020х800 | 1200 | 100-250 | 160 | 9900 |
| BM-ICS K35 | 1800х280 | 1535 | 175-250 | 160 | 18600 |
| BM-ICS K36 | 1000х280 | 1535 | 75-130 | 90 | 10200 |
Tertiary impact crushers BM-ICT
| Opening feed size, mm | Rotor diameter, mm |
Capacity range, t/h |
Engine power, kW |
Weight, kg | |
| BM-ICT1215 | 230х1500 | 1200 | 150-750 | 315 | 19800 |
| BM-ICT1212 | 230х1200 | 1200 | 90-150 | 200 | 14500 |
| BM-ICT1285 | 230х850 | 1200 | 70-100 | 160 | 10500 |
| BM-ICT1260 | 230х600 | 1200 | 40-70 | 110 | 7200 |
| BM-ICT1010 | 300х1040 | 1000 | 80-100 | 200 | 6000 |
