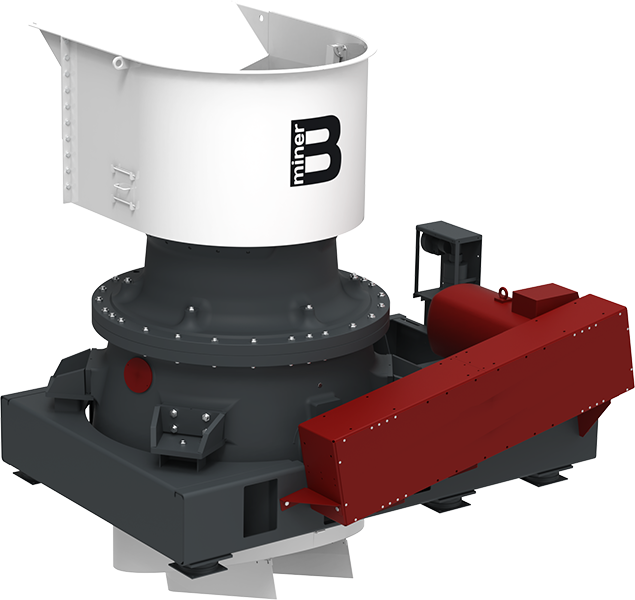

Cone crushers BM-MGP and BM-MGPS series
Cone crushers B-Miner BM-MGP and BM-MGPS are designed to efficient processing of incoming material to get the end product with high granulometric characteristics.
These crushers are engineered to be used for all types of rock hardness and at the secondary, tertiary and quaternary crushing stages.
Crushers of this series are fitted with hydraulic system, which allows to adjust machine settings and provide operational safety. Possibility to adjust eccentricity and to change crushing chamber allows to control throughput capacity of crushers plus improved construction ensures higher nominal power of the crusher.
Continuous control system makes it possible to sustain high technical availability ratio of equipment and production characteristics of end product.

Cone crushers B-Miner BM-MGP and BM-MGPS Technical features
Max. feed size, mm | Max. engine power, kW |
Capacity range, t/h |
CSS size range, mm |
Amount of crushing chambers | Weight, kg | |
BM-MGP 200 | 210 | 160 | 60-240 | 6-38 | 4 | 9100 |
BM-MGP 220 | 213 | 220 | 80-260 | 6-38 | 4 | 10200 |
BM-MGP 300 | 260 | 250 | 100-365 | 8-44 | 6 | 13100 |
BM-MGP 330 | 260 | 315 | 100-420 | 8-44 | 6 | 15700 |
BM-MGP 550 | 300 | 400 | 150-500 | 13-51 | 6 | 26500 |
BM-MGPS 200 | 330 | 160 | 110-350 | 19-54 | 2 | 10900 |
BM-MGPS 300 | 380 | 250 | 170-530 | 25-54 | 2 | 16200 |
BM-MGPS 500 | 500 | 315 | 300-1000 | 38-83 | 1909 | 33300 |
